60KW Chicken Poultry Feed Production Line Belt Type

Brand Name : Strongwin

Model Number : 1.5-2.5t/h feed line

Certification : CE,ISO

Place of Origin : Henan,China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per year

Delivery Time : 15-30 working days

Packaging Details : whole production line:by container

Name : 60KW Chicken Poultry Feed Production Line Belt Type

Capacity : 1.5-2.5t/h

Type : Belt type

Power : 60KW

Voltage : 380V/50Hz

Feed size : 2-15mm

Installation : Offer manual book and engineer's guidance

Service : 24 hours online technical support

Contact Now

60KW Chicken Poultry Feed Production Line Belt Type

Description of Poultry Chicken Animal Feed Production Line

About SZLH250 animal feed pellet line, Our factory supply plan A and plan B for Customers choose.
Feed pellet processing line craft:

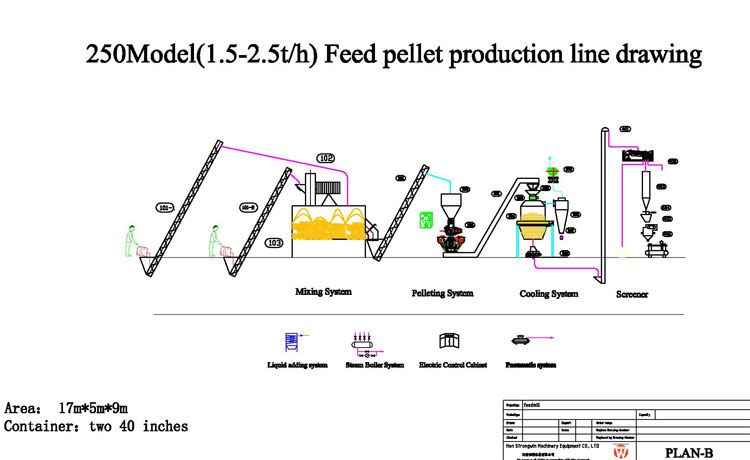

Plan A: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Screening & Grading → Pellet Packing

Plan B: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet crumbler → Rotary grading screen → Pellet Packing
Both the two plans are Simple operate and small land area. Popular among Customers at home and abroad.
60KW Chicken Poultry Feed Production Line Belt Type

Technical parameters of Poultry Chicken Animal Feed Production Line

No. Product Type Power(KW)
1.Raw materials receiving and crushing and mixing system
101-1 Screw Conveyor TLSS16 2.2
101-2 Screw Conveyor TLSS20 3
103 Imitation grinder (including iron remover) SFPZ56*30 18.5
104 U-shaped ribbon horizontal mixer LHY1.0 7.5
2.Pelleting system
201 Screw Conveyor TLSS20 3
202 To be granulated bin (including window) 1.0m³
203 Pellet Machine(include control box) SZLH250 11*2+2.2+0.75
3.Cooling system
301 Skirt belt conveyor QBPS400 2.2
302 Buffer bucket 0.2m³
303 Stainless steel air shutter GFY250 1.1
304 Counter Flow Cooler SKLN1.0 0.75
305 Air Blower 4-72No4A 5.5
306 Unloader XL60
307 Wind shut GFY215 0.75
308 Crumbler machine SSLG15*80 5.5
4.Screening and packaging system
401 Bucket elevator TDTG26/18 2.2
402 Rotary grading screen SFJH80*2d 1.5
403 Finished product warehouse 2m³
404 Pneumatic gate
405 Buffer bucket
406 Packing scale with sewing machine 2.2
Optional Simple oil filling system (including pipes and nozzles) SYVT32 1.5
Air compression system 3
Boiler with link system 0.3t/h 3
Price Welcome contact us for latest price
